SPIKE Firmware

Tufts CEEO SPIKE+ Firmware is MicroPython for SPIKE with UART and I2C which allows you to connect your own dongles. Connect SPIKE Prime and Essential hub by USB to inTufts CEEO has developed a custom firmware for SPIKE Prime Hub and SPIKE Essential Hub that enable UART and I²C communication (as well as individual digital pin control) via the SPIKE Ports, while maintaining all original SPIKE functionality. This allows SPIKE Hubs to communicate with a wide variety of external devices (breadboards, microprocessors, and other third-party electronic hardware).

Installation Instructions (via Hub's bootloader mode)

Place the Hub in bootloader mode:
- Turn off the Hub.
- Disconnect the USB cable.
- Press and hold the Bluetooth button (SPIKE Prime) or power button (SPIKE Essential).
- Connect the USB cable (to both the Hub and your computer).
- Wait for the Bluetooth light to start blinking pink-green-blue-off (SPIKE Prime) or wait for the status light to start blinking light purple (SPIKE Essential).
- Release the button; Hub is now in bootloader mode.
Select the Connect button below, and choose the Hub (Hub in DFU Mode) from selector menu.
Once connected, pick which version of firmware (SPIKE Prime or SPIKE Essential) to install.
Wait for installation process to complete; if there is an error, restart/retry all steps.

Device disconnected

Vendor ID (hex):

Runtime mode

Tufts CEEO

SPIKE+ Firmware

Installation Instructions (via Hub's bootloader mode)

Install firmware

Example Projects

Are we missing anything?Let us know!

Tufts CEEO

SPIKE+ Firmware

Installation Instructions (via Hub's bootloader mode)

Install firmware

Example Projects

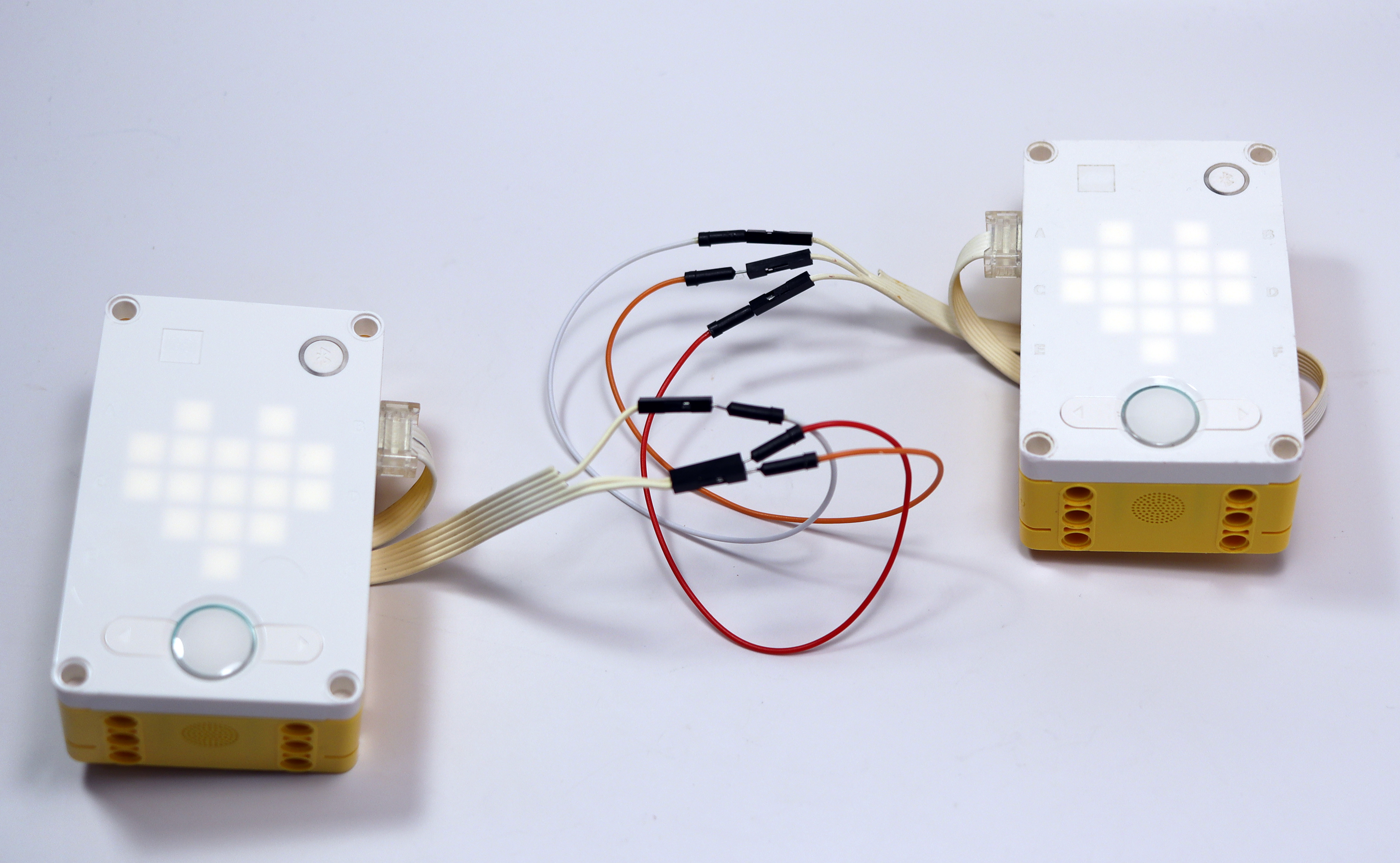

SPIKE to SPIKE Communication

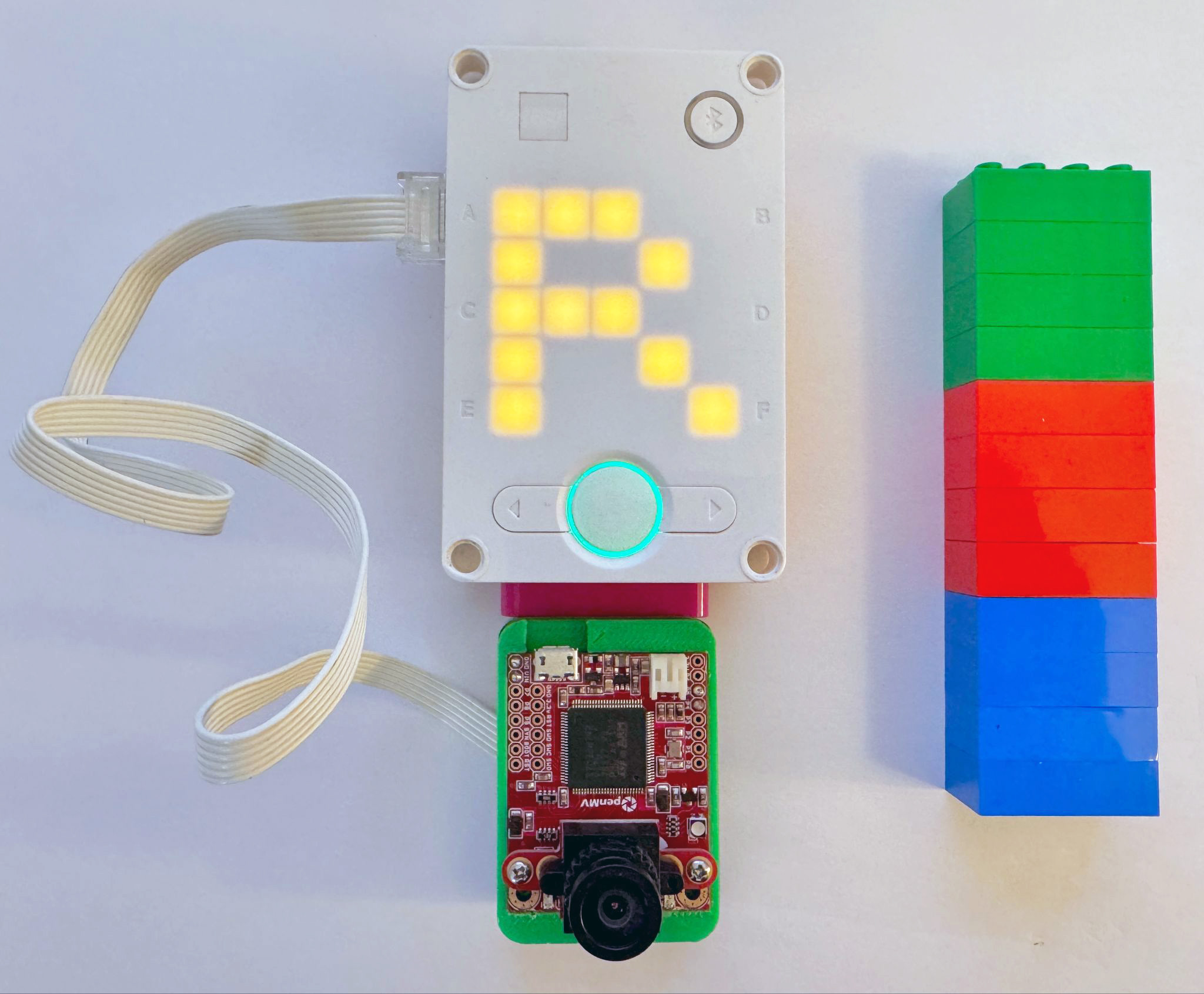

OpenMV Color Detector

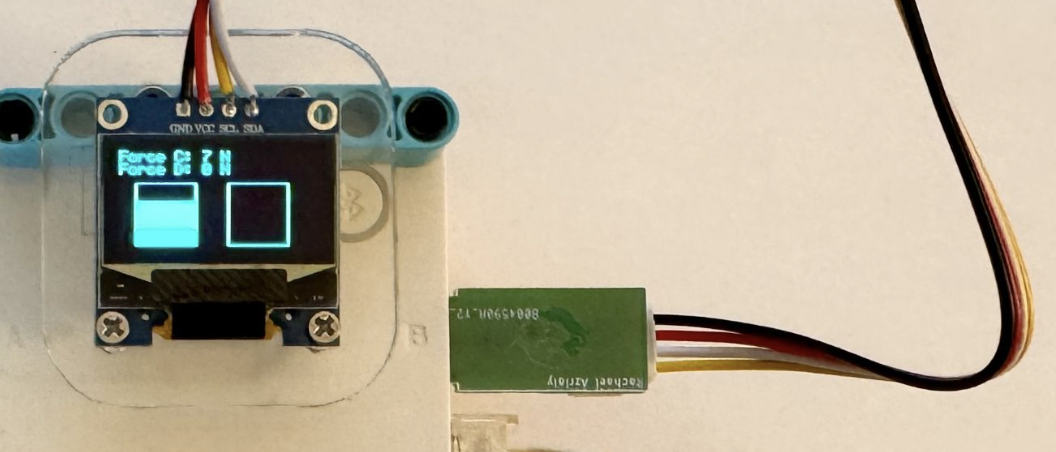

OLED Screen with Force Sensors
